Truncated Domes ADA Pads - #A550
- Sizes and Prices
- Related Products(4)
Our ADA Pads are designed for the visually impaired to feel the raised, truncated domes with their feet. This, in combination with the tapping cane which can alert them to a different surface than the surrounding concrete side walk and an upcoming intersection.
- Surface Mount Peel&Stick-pads are constructed of extremely durable, UV protected polyurethane. This flexible mat has a proprietary pre-applied adhesive system that enables installation in less than 10 minutes, drastically reducing labor time and expense, but not at the expense of durability. RediMat - Lasts and comply for Years.
- Cast In Place Replaceable-reinforced thermoset plastic engineered for superior impact-resistance, slip-resistance,wear-resistance and long term durability. Our exclusive design incorporates a top panel of truncated domes and bottom docking anchors that are embedded into wet concrete. The special concrete anchors lock the part securely into the concrete without trapping air beneath the part's surface, allowing the molded dome mat to be replaced in years to come.
Surface Mount--Cast In Place
Brand: Detectable Warning

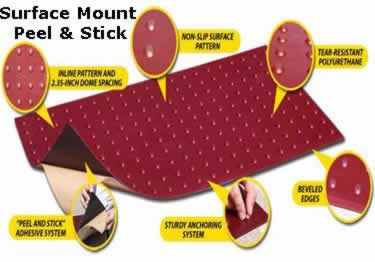

- Surface Mount Peel and Stick Pads
No adhesives to apply. Simply remove protective backing, exclusive peel and stick technology.
Installs on both asphalt and concrete with a multi-surface adhesive system, conforms to uneven surfaces, made of flexible polyurethane material. Unbreakable-will not chip, crack, or splinter.
Cast In Place-Replaceable Replaceable, uses patented PENETRATOR anchoring system with a simple wet concrete installation with minimal aggregate displacement and maximum holding capabilities. Easy tile replacement should the need arise. Premium UV Treatment ensures long term color retention. Superior strength and impact resistance, reinforced to over 30,000 psi, yet lightweight. All weather performance, hot and cold climate superiority Delivered ready to install anchors in place, protective sheeting with attached installation instructions in English and Spanish. Already present beveled Edges for easy pedestrian access and work Zone Application.
- Flexible construction forms to fit dips, slopes and inclines in sidewalks and walkways.
- Cast-in-Place, 1/4" Thick
- Surface Mount, 1/8" Thick
- Installs quickly and easily
- Better impact resistance than composites.
- California Code, place two 2-1/2' x 3' together, to equal a 3" x 5'.
- California requires a minimum of 3 ft. width, all other states are 2 ft. width.
- Complies with the Americans with Disabilities Act (ADA).
Want more information?
See the following Product Information Sheet(s):
There are four points to keep in mind for our product versus a metal product.
- The metal product patinas/rusts
- Usability - the metal is very heavy and hard to work with
- If the domes get damaged, it's extremely difficult to remove and replace with a new metal pad; with ours you just unscrew and replace the top only
- Price - metal is typically a higher cost than our product.
Do you have any questions about this product? Call (888)355-6287, or email us.Questions others have asked:
What is the light reflectance value (LRV) of your gray truncated domes product? We would like to ensure compliance with Section 11B-705.1.1.3.2 of the 2016 California Building Code. Thank you,
Thank you for your interest in our ADA Pads. As far as the light reflectance value - this has not been tested but we do meet the 70% color contrast required by many state DOTs using dark gray on standard Cole concrete. In addition, we do meet the California Building Code (CBC) requirement of "Light on dark or dark on light", and we have been using gray as produced in our CA plant for over 20 years. At this time, we do not have any action photos of the gray, however, the City of Carlsbad, CA has specified and used gray AlertCast for 3+ years. If you need anything, please let us know.
Hi, We have a project in Berkeley California where we would be installing the peel and stick yellow ADA truncated domes to hot dipped galvanized exterior 3/4" thick steel ramps with no fasteners. will this work?
Hi Steve, Thank you for your question. Yes, the peel and stick yellow ADA domes can stick to a 3/4" galvanized steel ramp. Please make sure the steel has been cleaned very well using Acetone or equivalent and is grease-free before installation. Thank You, The Koffler Team
I wonder what is the difference between your product made of plastic (cast in place) and the other one made of metal. Thank you.
Hi Dora, Thank you for your question. We do not have a metal truncated dome product. The Cast-in-Place is made from glass reinforced thermoset composite. The Surface Mount is an extremely durable UV protected polyurethane. Thank you, The Kopffler Team
I’m checking to see if any of your detectable warning mats have been reviewed and approved by California’s Division of the State Architect as required for their use in California by the 2013 Calif Bldg Code Section 11B-705.3. If not, will you provide a written 5 year warranty in regards to color, sound characteristics and integrity? Thank you in advance, Chris Hansen, CASp #270
Hi Chris, Thank you for your question. Please visit this product page and click on the tab labeled, "Specifications" and see the PDF document titled, "ADA Guidelines." Thank you, The Koffler Team
What is the ship and delivery time to San Antonio, Texas
Hi Bill, Thank you for your question. Most of the orders are shipped out next day or the following day. Thank you, The Koffler Team
How wide should the pads be in relation to side walk width?
Hi George, Thank you for your question. It varies depending on city. Please check with your municipality for their specifications. Thank you, The Koffler Team
can you cut the Truncated Domes to size? I have a couple of Rams that are 44" between the slopes or will code alow for the 3 ft ones to be centered?
Hi Frank, Thank you for your question. We do not cut these products to size. However, please refer to our Specification Tab located on our product page, if you scroll down you will see a link that says, ADA Guidelines. Hopefully that will help. Thank You, The Koffler Team
Truncated Domes ADA Pads
ADA Pads are designed for the visually impaired to feel the raised, truncated domes with their feet.
